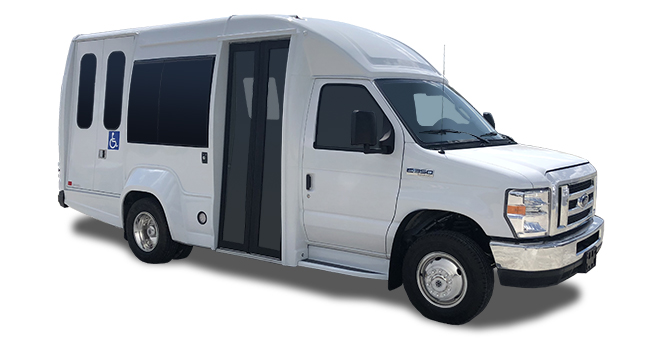

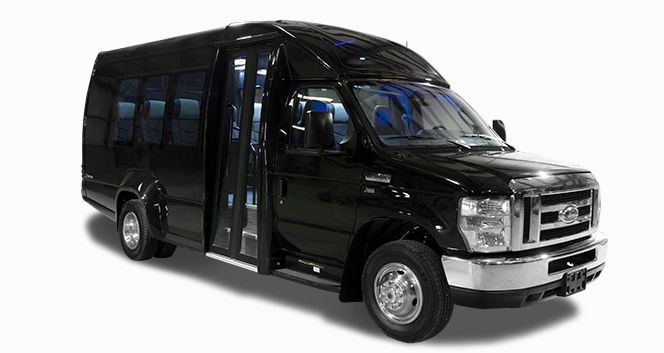

Turtle Top VanTerra
Model Overview
The Turtle Top VanTerra is constructed on the Ford E-350 cutaway power train with either single or dual rear wheels. Multiple floor lengths give flexibility for a variety of paratransit and luxury options.
This model includes a true five-sided structure that sets the standard in industry safety. The aerodynamic exterior and comfortable interior feature an enormous passenger view window and sophisticated lighting packages. Occupant counts from 1 to 18 are welcome with ample seating making the VanTerra truly the head of its class.
Model Specifications
*All passenger capacities are references and subject to final weight anaylsis
VanTerra, XL, & XLT Standard Equipment Specifications
Welded tubular steel cage w/ seat track mounted in floor & sidewalls
Welded perimeter steel floor frame supported by reinforced box style crossmembers
Re-route exhaust to driver’s side
Steel wheel well pans
Drive shaft guard
Rear mud flaps
Steel cage primed with rust inhibitor
Underbody foam sealed and undercoated
3/4″ Coosa Composite subfloor
One piece fiberglass roof
Fiberglass rear cowl & Fiberglass composite exterior sidewalls
Contoured fiberglass lower body skirts and running boards
Steel reinforced fiberglass rear bumper
1″ polystyrene foam board insulation
Electric Water Shut-off Valve, on the return line
(5) Tinted solid windows (28.5″w x 34.5″h)
(2) Tinted solid side egress windows to meet FMVSS 217 (28.5″w x 34.5″h)
Tinted solid rear egress window (54″w x 26″h)
LED running and clearance lights per FMVSS 108 (9 red & 7 amber)
Durable bright white reinforced fiberglass ceiling and sidewalls
LED stop/tail/turn lights1
Red reflectors (2 side, 2 rear)
LED backup lights & LED license plate lights
Velvac manual exterior mirrors (L & R)
Overall white paint
Nitrogen tire inflation
Smooth black Altro floor and stepwell
ABS wheel well covers
Modesty Panel & angled hand rail at left of entrance door, grab bar (36″) at right of entrance door
Color-coded high temp GXL wiring harness with positive-lock, weatherproof connectors
Operator-friendly lighted switch panel
State of the art electrical panel with printed circuitry
3″ Round LED Convenience lighting in cab and stepwell
3″ Round LED dome lights
NOTE – Some Optional equipment will negate the use of standard equipment listed above
Floor Plans

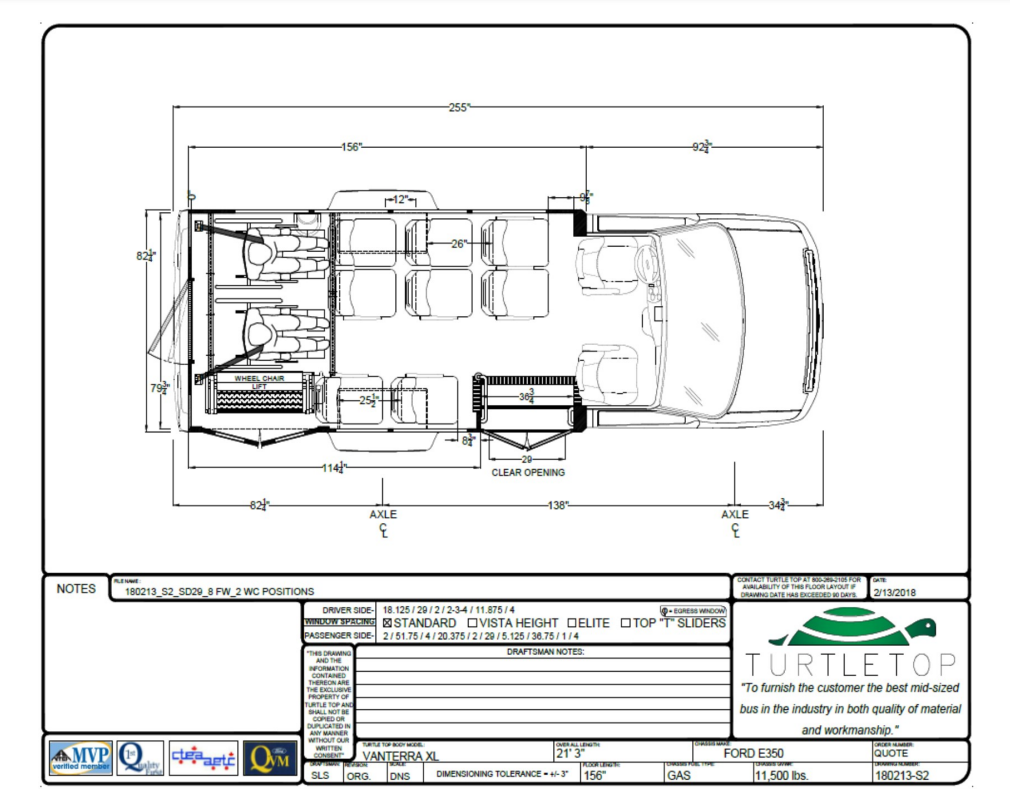

VanTerra XL
9 + 2 Pass

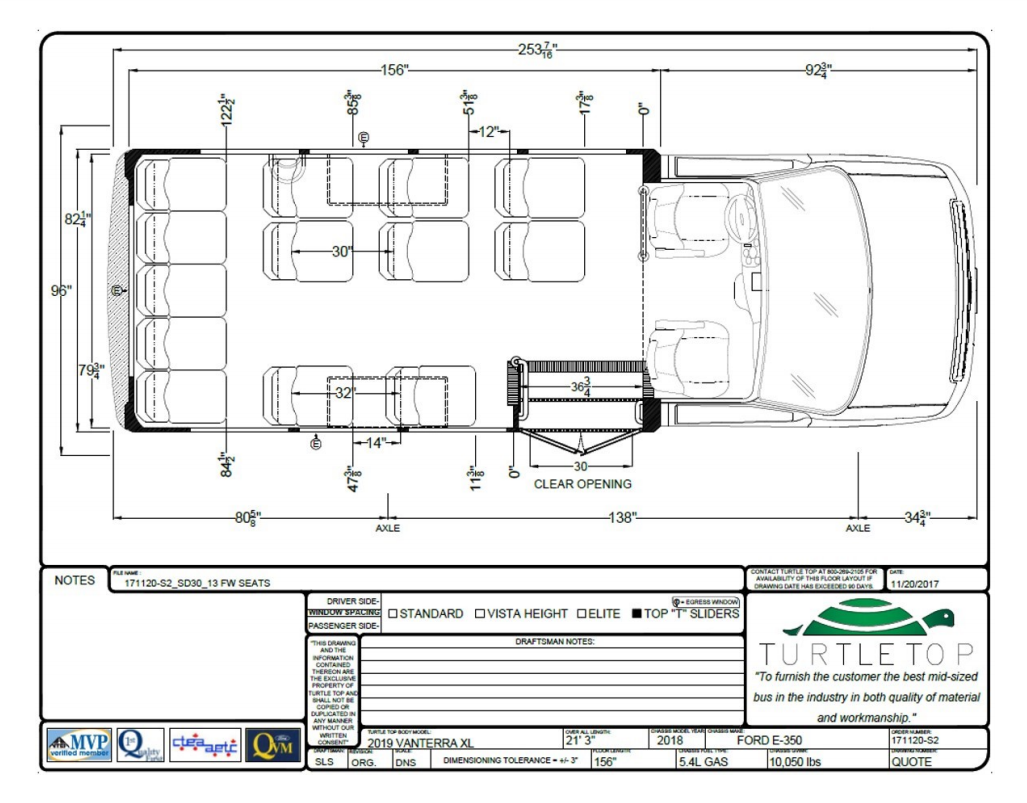

VanTerra XL
14 Pass + Dr. & Co-Pilot

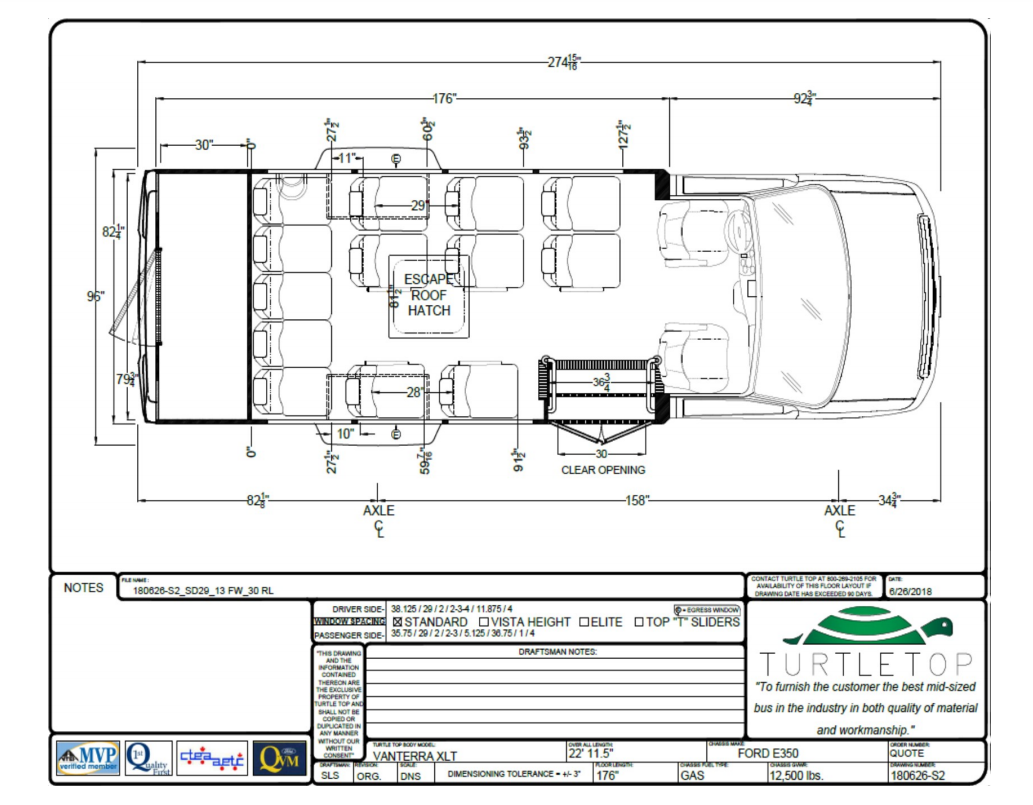

VanTerra XLT
14 Pass + Dr. & Co-Pilot
Photos
Warranty
All of Nations Bus Sale’s new buses come with a full warranty, so you don’t have to worry about unexpected costs. Some of our used vehicles also come with a warranty, and an extended warranty is available on most vehicles. If you ever need any warranty work completed, be sure to contact Nations Bus Sales first to guarantee you are working with an authorized service center and to pre-approve repairs.
Click to Submit a
Warranty Claim Online
Call 1-800-523-3262 to
Speak With a Live Warranty Specialist
The warranty period with respect to the bus body components of your Turtle Top Vanterra, VT3, Odyssey, Odyssey XL and Terra Transit unit extends FIVE (5) years from the date when the unit is delivered to you or until the unit has been driven 100,000 miles, if sooner. If vehicle is purchased based on a DOT specification requiring custom warranty, that warranty declaration issued with the BID prevails.
